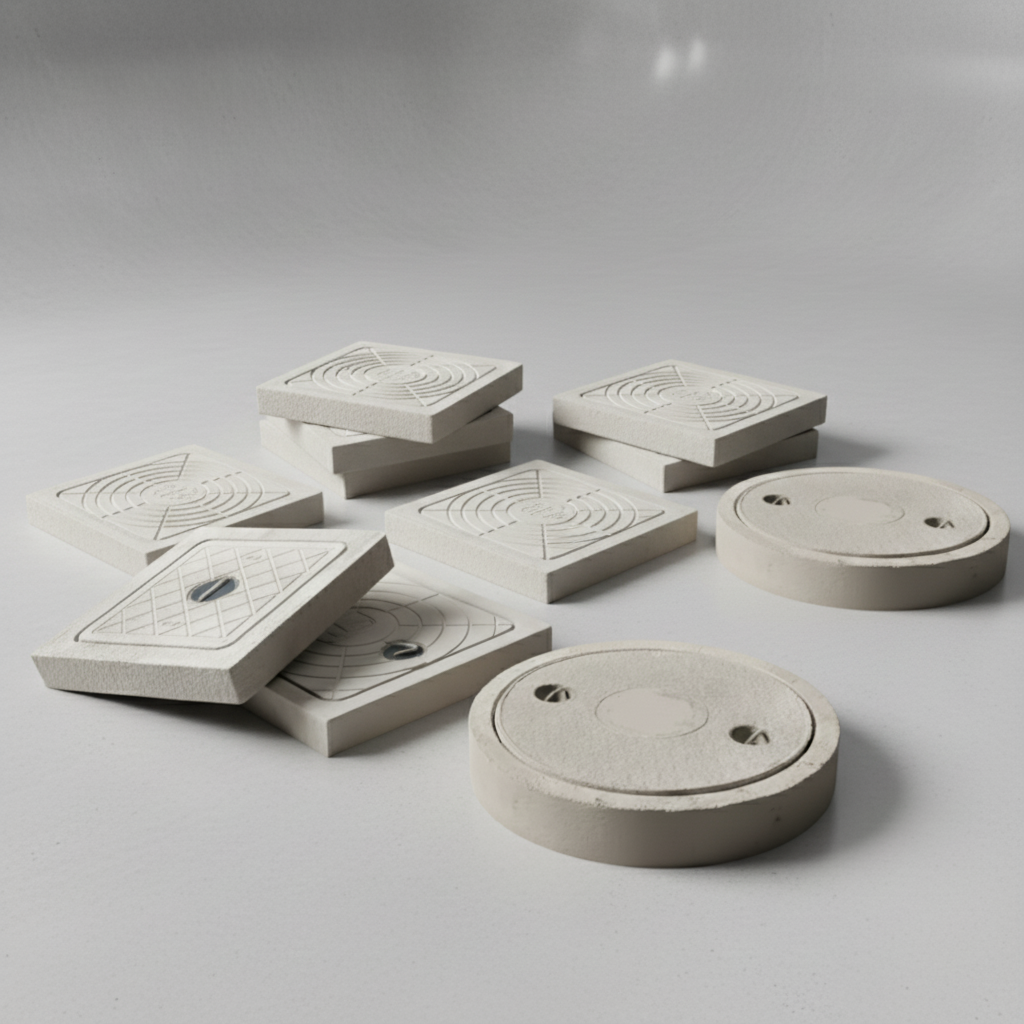

SFRC Manhole Cover

40–60MPa Strength

IS12592 Certified

Infrastructure Product

SFRC Manhole
Cover & Frame

"Strength Engineered into Every Fibre."

Igloo's SFRC (Steel Fiber Reinforced Concrete) Manhole Covers are engineered with a high-performance concrete matrix reinforced with precisely dosed steel fibers. This technology eliminates the need for traditional rebar, reducing weight while dramatically increasing tensile strength and crack resistance. Unlike cast iron covers, our SFRC units are non-conductive, corrosion-free, theft-deterrent (no scrap value), and suitable for Tamil Nadu's aggressive environmental conditions — from coastal salt air to heavy monsoon flooding.

✓

Compressive strength 40–60 MPa (exceeds IS 12592)

✓

Anti-theft — no metal scrap value, tamper-resistant

✓

Non-conductive — safe near electrical utilities

✓

Corrosion & chemical resistant — zero rusting

✓

Available in Light Duty, Medium Duty & Heavy Duty

✓

TNUIFSL & CMWSSB approved for government projects

Load Class Options

Class A

Light Duty

1.5TLoad Capacity

Pedestrian areas, gardens, footpaths

Class B

Medium Duty

12.5TLoad Capacity

Urban roads, residential streets

Class C

Heavy Duty

40TLoad Capacity

Highways, ports, industrial yards

Request a Quote 💬 WhatsApp Enquiry

Size & Load Specifications

S.No	Mould Size	Weight	Type	Door		Frame		Clear Opening	Load Capacity
S.No	Mould Size	Weight	Type	Size	Thickness	Size	Thickness	Clear Opening	Load Capacity

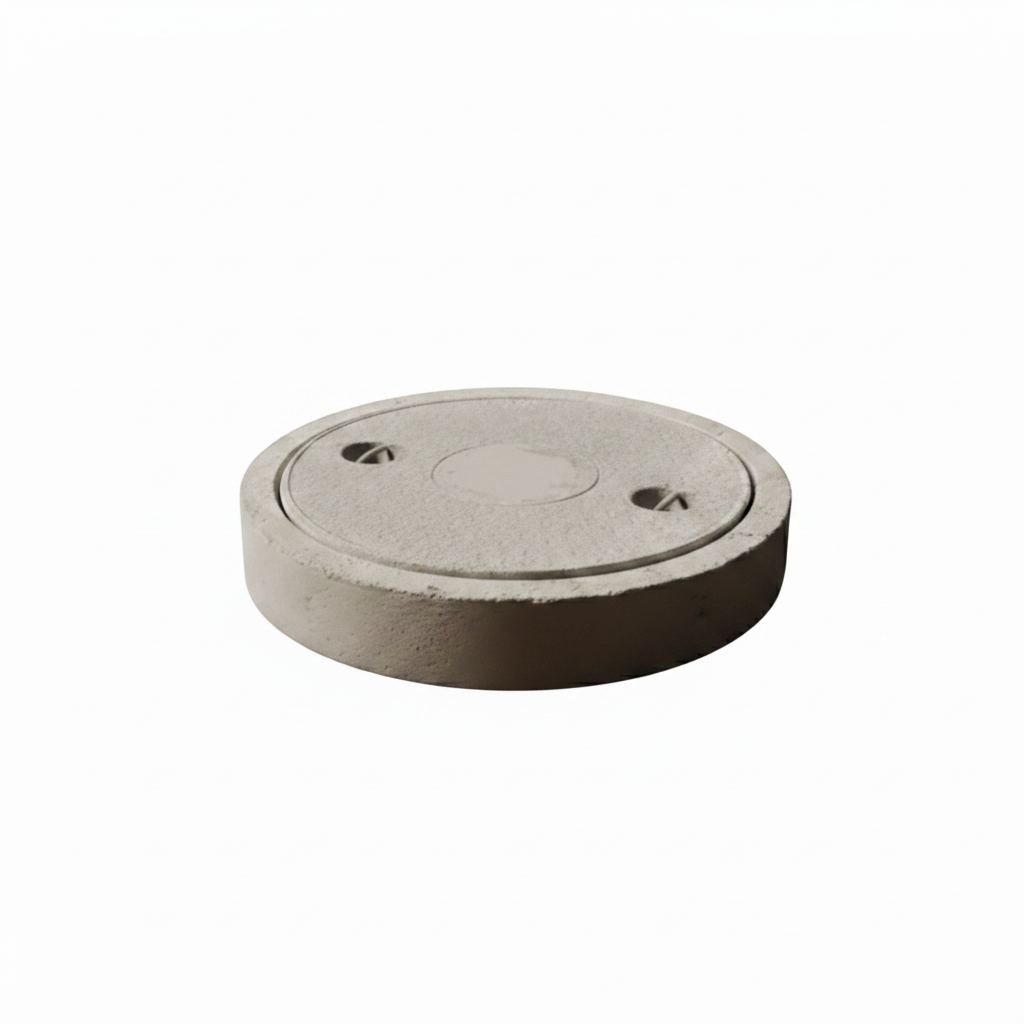

01	36″ Round	202 kg	HD	745 mm	100 mm	36″ – R	165 mm	24″	30–35 T

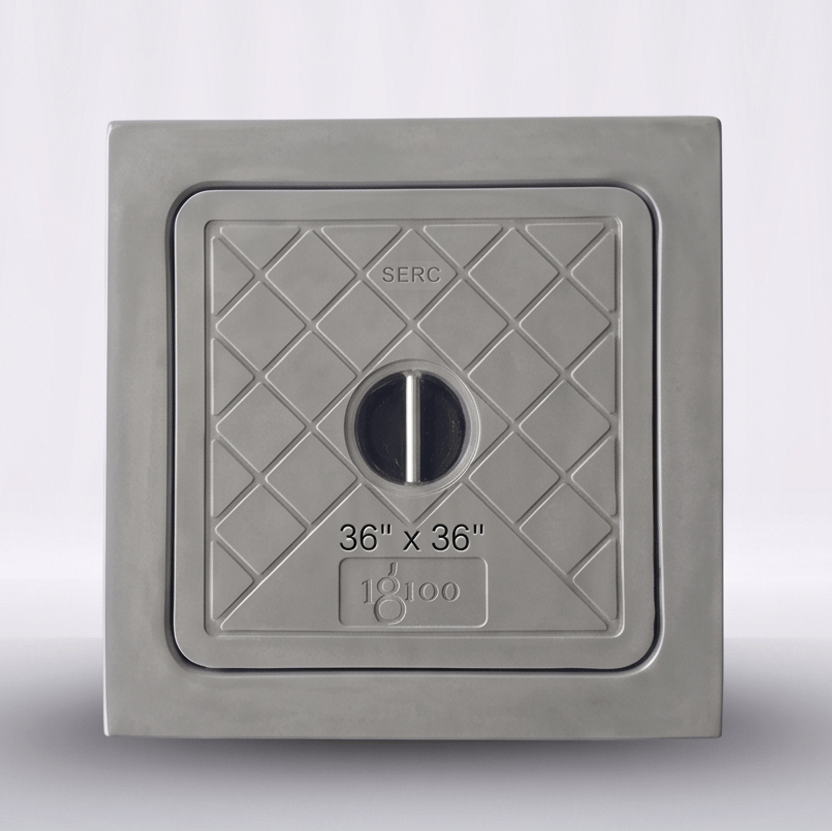

02	36″ × 36″	250 kg	HD	730 mm	80 mm	36″ × 36″	155 mm	24″	30–35 T

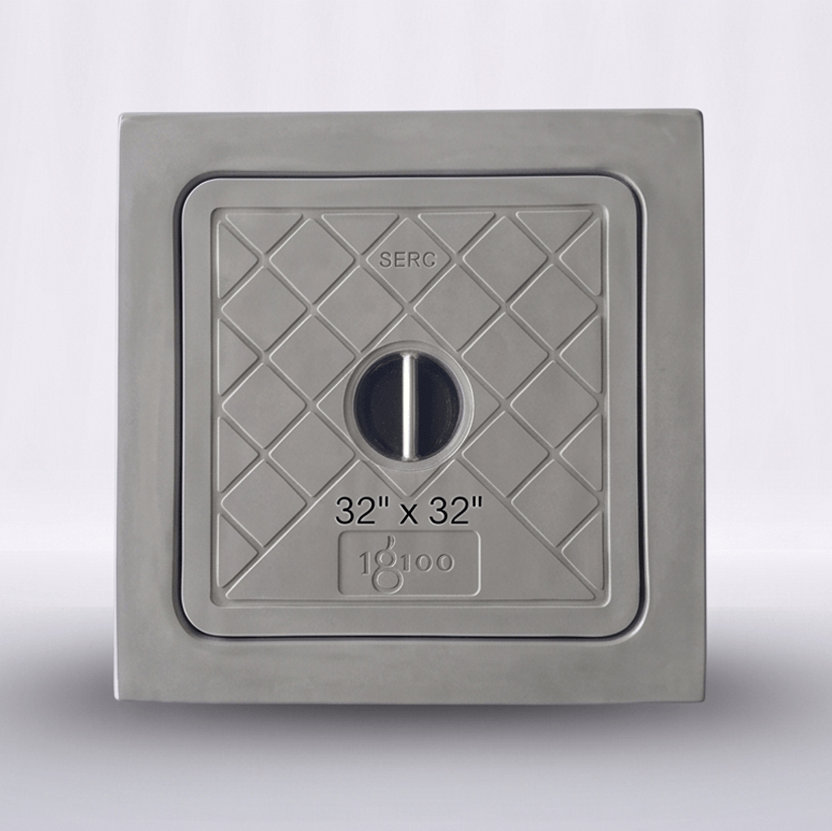

03	32″ × 32″	170 kg	HD	700 mm	75 mm	32″ × 32″	165 mm	24″	20–25 T
04	32″ × 32″	116 kg	MD	700 mm	50 mm	32″ × 32″	100 mm	24″	10 T

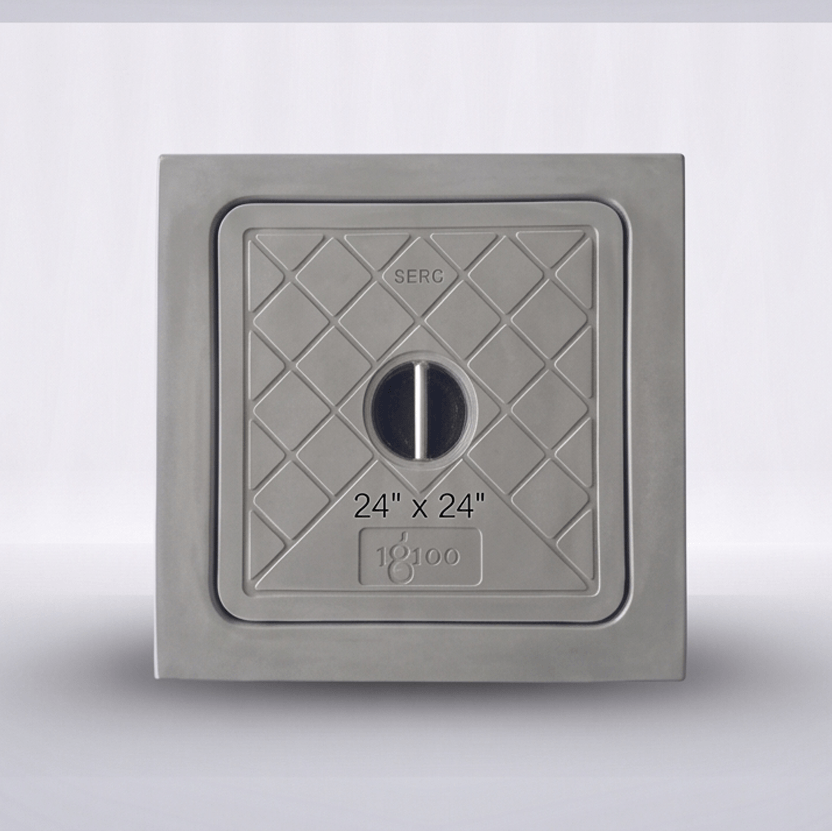

05	24″ × 24″	51 kg	MD	500 mm	45 mm	24″ × 24″	85 mm	18″	6–7 T
06	24″ × 24″	41 kg	LD	500 mm	30 mm	24″ × 24″	65 mm	18″	2 T

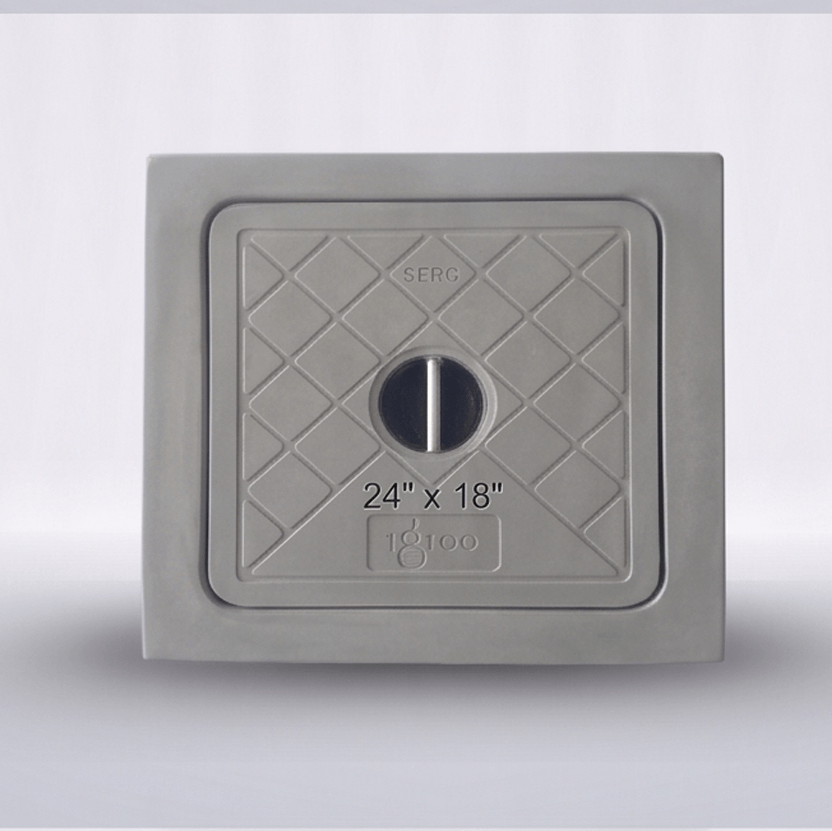

07	24″ × 18″	41 kg	MD	500 × 350 mm	45 mm	18″ × 24″	80 mm	17″ × 11″	2 T
08	21″ × 21″	32 kg	MD	440 mm	30 mm	21″ × 21″	65 mm	14.5″	1.5 T
09	18″ × 18″	29 kg	MD	380 mm	40 mm	18″ × 18″	75 mm	12″	1.5 T
10	15″ × 15″	18 kg	MD	300 mm	40 mm	15″ × 15″	70 mm	10″	0.8 T
11	12″ × 12″	10 kg	MD	235 mm	30 mm	12″ × 12″	50 mm	9″	0.5 T

HD — Heavy Duty | MD — Medium Duty | LD — Light Duty | T — Tonnes

Anti-Theft by Design

Unlike cast iron, SFRC has no metal scrap value. Virtually eliminates theft — a major problem with conventional iron covers in Indian cities.

Electrical Safety

Non-conductive material is safe near electrical cables, transformer stations, and telecom ducts — mandatory in many urban utility specifications.

Corrosion Proof

Zero rusting even in Tamil Nadu's coastal saline environments and high-humidity monsoon conditions. Maintenance-free for 30+ years.

High Load Capacity

Heavy Duty Class C withstands 40-tonne axle loads — suitable for port roads, national highways, and heavy industrial facilities.

Lightweight vs. Cast Iron

30% lighter than equivalent cast iron covers, making installation faster, safer, and more ergonomic — reducing labour costs significantly.

IS 12592 Certified

Tested and certified to Bureau of Indian Standards IS 12592:2002 — accepted in all TNUIFSL, TWAD, CMWSSB, and municipal projects.

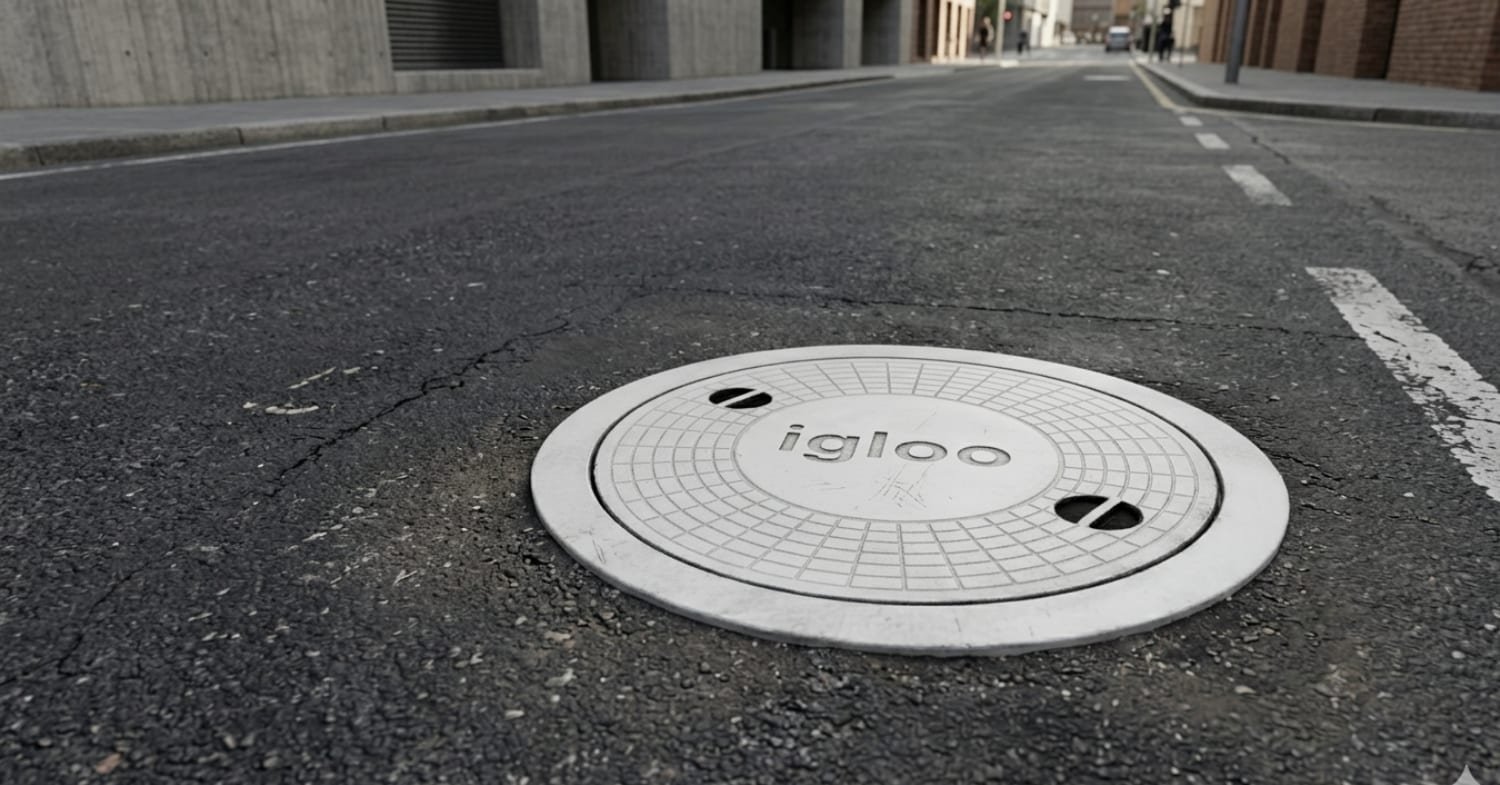

Urban Roads

Industrial Areas

National Highways

Electrical Substations

Water Supply Networks

Sewerage Systems

Construction Sites

Ports & Harbours

Standard

IS 12592 : 2002

Compressive Strength

40–60 MPa

Steel Fiber Dosage

40 kg/m³

Water Absorption

≤ 6%

Light Duty (LD)

Up to 2 Tonnes

Medium Duty (MD)

Up to 12.5 Tonnes

Heavy Duty (HD)

30 to 35 Tonnes

Sizes Available

12″ to 36″

Design Life

30+ Years

SFRC ManholeCover & Frame

Size & Load Specifications

Specify Igloo SFRC for Your Infrastructure Project
